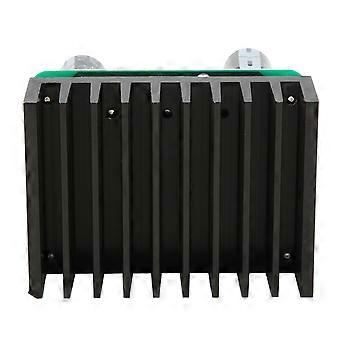

600W StepUp Module DC 1060V to DC 1280V Boost Power Supply Converter for Laptop Digital Products Item Type: Step-Up Module Material: ABS Module nature: Non-isolated boost module (BOOST) Input Voltage: 12-60VDC input (for wide input voltage range applications) Input Current: 15A (maximum) over 10A, please strengthen heat dissipation Static Operating Current: 15mA (measured when 12V rises to 20V, the higher the output voltage, the static current will increase) Output Voltage: 12-80VDC continuously adjustable, suitable for applications where the input voltage is less than the output voltage, and cannot be stepped down Output Current: 10A maximum Please strengthen heat dissipation if it exceeds 10A (related to the input and output pressure difference, the greater the pressure difference, the smaller the output current) High Output Power: = input voltage x 10A, such as: input 12V x 10A=120W, input 24V x 10A=240W, input 36V x 10A=360W, input 48V x 10A=480W, input 60V x 10A=600W If you need more power, you can use two modules in parallel. For example, if the output is 15A, you can use two modules in parallel and adjust the current of each module to 8A. Working Temperature: -40-+85℃ (please strengthen heat dissipation when the ambient temperature is too high) Working Frequency: 150KHz Conversion Efficiency: 95% Higher (efficiency is related to input, output voltage, current, and pressure difference) Overcurrent Protection: Yes (when the input exceeds 17A, the output voltage will be automatically reduced with a certain range of error.) Short Circuit Protection: Yes (input 20A fuse) double short circuit protection, Input Reverse Connection Protection: None
