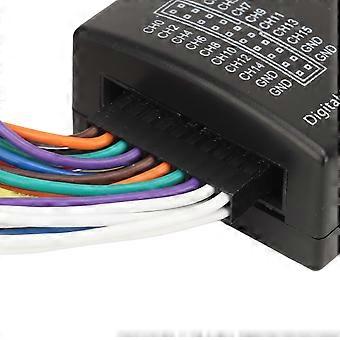

Feature: 1. COMPACT AND PORTABLE: Logic analyzer support the latest version of for SALEAE LOGIC2 software. Luxury interface can simultaneously catch synchronous display. Small size and easy to carry, use USB power supply, easy to debug on site 2. SUPPORTED SOFTWARE: Logic analyzer directly support official software. You can download the software directly from the official, or you can ask for multiple operating systems and versions that have been downloaded. Oss such as for WINDOWS, for LINUX, and for OS X are supported, and later versions of the software are supported 3. COMPUTER STORAGE: USB logic analyzer collect data in real time and transmit to the computer using the USB2.0 high speed interface. The computer side implement real time data storage management, and then display after the collection is finished. The memory of the computer is used as the acquisition memory, so that the storage depth can not be matched by the traditional logic analyzer, and the storage depth of G level can be easily reached 4. SAMPLING RATE: 16 channel logic analyzer can flexibly set the sampling rate and the number of collection channels. The maximum sampling rate is 100M for 3 channel collection, 50M for 6 channel collection, 32MHZ for 9 channel collection, and 16M for 16 channel collection 5. CONFIGURABLE PARAMETERS: Logic analyzer can set protocol parsing parameters, such as the familiar RS232 protocol, the board level is generally called UART. You can set baud rate, data length, stop bit, check bit and other parameters in the setting interface. This setting can be set before the collection, or can be arbitrarily changed after the collection of data, the new data will be analyzed and displayed according to the new setting 6. EASY PARSING: Logic analyzer oscilloscope can view timing details and DEBUG. You can also view the communication content from a macro perspective and save the output of the content parsed by the protocol to text files and spreadsheet files Specification: Item Type: Logic Analyzer Material: ABS Number of Channels: 16 Sampling Rate: Maximum 100M. Package List: 1 x Logic Analyzer 1 x Connection Cable 4 x Accessories Note: 1. Please try to connect the logic analyzer to the USB port at the back of a desktop computer. Connecting it to the front USB port may result in a low data transfer rate due to the long and low quality wiring between the computer case and the motherboard. 2. The USB ports on laptops often have lower performance and power quality compared to desktop computers, which may cause a lower transfer rate. 3. The use of a USB hub can also affect the sampling rate and power quality of the logic analyzer. 4. If there are other USB devices, such as a WiFi card or a USB flash drive, connected to the USB port next to the one used for the logic analyzer, it may also impact the data acquisition speed. 5. Each logic analyzer undergoes a three channel 100M sampling test on multiple computers before being shipped to ensure its performance. 6. The PCB board design and layout are meticulously done to ensure high performance USB functionality and have passed electrical interference tests.
