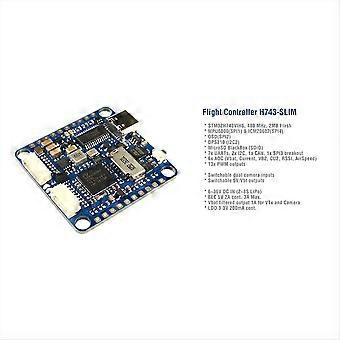

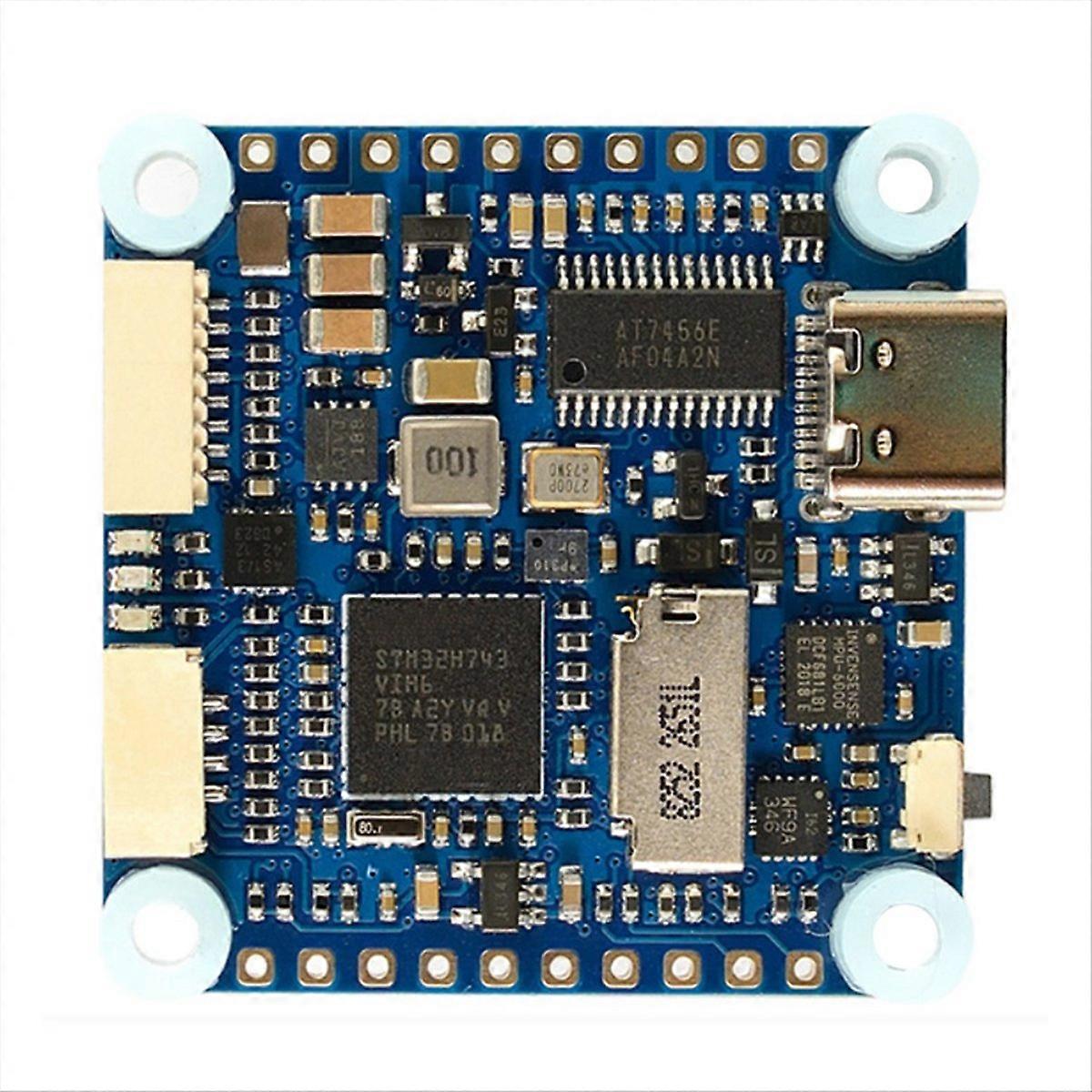

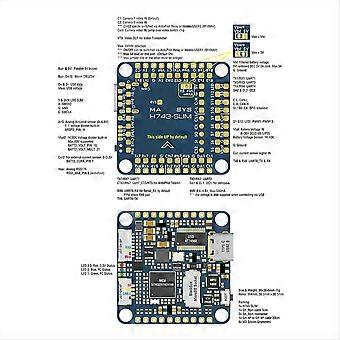

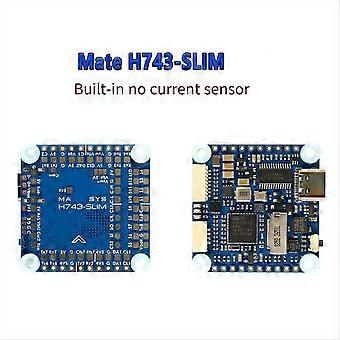

FC Specifications MCU: STM32H743VIH6, 480MHz , 1MB RAM, 2MB Flash IMU: MPU6000 (SPI1) & ICM20602 (SPI4) Baro: DPS310 (I2C2) OSD: AT7456E (SPI2) : Micro-SD card socket (SDIO) 7x Uarts (1,2,3,4,6,7,8) with built-in inversion. 13x PWM outputs(including "LED" pad) 2x I2C 1x CAN 6x ADC (VBAT, Current, RSSI, Analog AirSpeed, Vbat2, Cur2) 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red) 1x SPI3 breakout USB Type-C(USB2.0) 1x JST-SH1.0_8pin connector (Vbat/G/Curr/Rx8/S1/S2/S3/S4) 1x JST-GH1.25_4pin connector (5V/CAN-H/CAN-L/G) Dual Camera Inputs switch 5V/Vbat filtered power ON/OFF switch for FPV OSD is supported by any spare UART Power Vbat Input: 6~36V (2~8S LiPo) BEC: 5V 2A cont. (Max.3A) 3.3V: Max.200mA No Current Sensor built-in ADC Vbat2 pad supports Max. 69V (voltage divider: 1K:20K) Static power: 200mA@5V with Betaflight, 150mA@5V with FC Firmware (ChiBiOS): MATEKH743 BetaFlight: MATEKH743 INAV: MATEKH743 (To be supported soon) Due to different batches, the appearance, color and printed words of the product , which not affect the use. Material: plastic colour: blue Package Contents: 1 x Module Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
