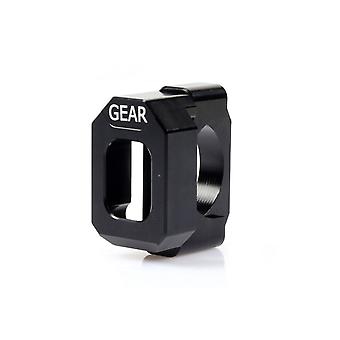

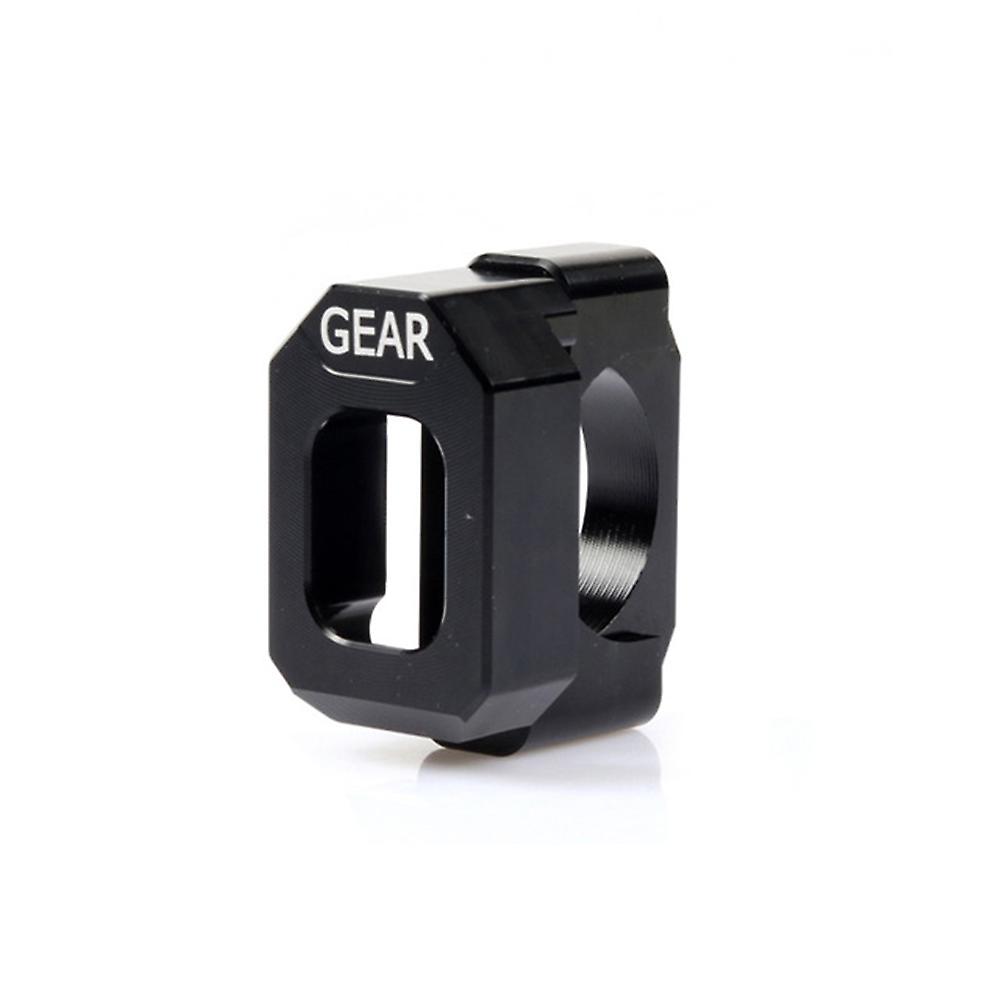

Equipment: For Kawasaki Z750 2010-2012 For Kawasaki Z750R 2011-2012 (If you encounter any questions, please contact me first, please do not leave negative comments first, hope I can answer your questions, thank you) Description: Condition: 100% Brand New Item Name: Transmission Gear Display Indicator Size: 4cm*4cm*4cm/1.57in*1.57in*1.57in*1.57in Function: Shows the current gear number Indicates the current gear from 1 up to max 6, as well as a neutral indicator. Detects the current gear faster than other gear indicators that use the speedometer/tachometer signal. Display can be mounted anywhere Installation: Locate the 4-pole male Diagnostic Connector (DLC), usually near the ECU box, may have a removable cap and may be partially covered with black tape. Configure: -You need to configure the module after installation. When the ignition is turned on, it will display backwards (6 to 1), which means the memory is clear. -Raise the rear wheel off the ground with a stand and start the engine in neutral. (If you don't have a stand, you can set up the device while driving. Find a long, straight road with light traffic.) The screen displays L, indicating that learning is started. Slowly accelerate by handle throttle -Display will flash "1". Select first gear, release the clutch and keep the engine speed above idle. The display flashes faster while the device learns the hardware. -When display shows "2", select two-position. Repeat this process until all runs have been thought of (5 or 6). The unit is programmed and should indicate the gears correctly. Now when the ignition is turned on it will flash forward (1 to 6) to indicate it is fully functional. (If there is an error in the learning process, please reset the gear display oacute;w, thank you) Reset: If some gears are not indicated correctly, please reset the gear display oacute;w. Turn on the switch lock key switch. When the oacute;w display shows 5.4.3, immediately turn off the switch lock key switch, and then immediately turn on the switch lock key switch. According to the above operation, turn the key switch lock switch on and off five times in a row to check whether the reset has been completed. Thank you
