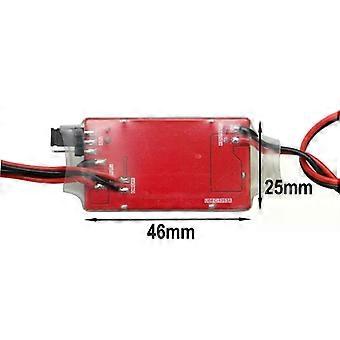

1PCS 2-12S 10-14S Lipo 3A 5A Fully Shielded Anti-jamming UBEC 5V/6V 5V/12V Switchable Ultra Battery Elimination Circuit Module 1PCS 2-12S 10-14S Lipo 3A 5A Fully Shielded Anti-jamming UBEC 5V/6V 5V/12V Switchable Ultra Battery Elimination Circuit Module 4 Types: 5V/6V 3A (YL12S3A01): - Input voltage:2S-12S Lipo - Output voltage:5V/6V adjust - Output current:3A(Max 5A) - Static current:8mA - Size:46x26x9mm - Weight:about 30g/pcs - Input voltage display:NOT diaplay 5V/12V 3A (YL12S3A02): - Input voltage:2S-12S Lipo - Output voltage:5V/12V adjust - Output current:3A(Max 5A) - Static current:8mA - Size:46x26x9mm - Weight:about 30g/pcs - Input voltage display:NOT diaplay 5V/6V 5A (YL14S5A01): - Input voltage:10S-14S Lipo(35V-60V) - Output voltage:5V/6V adjust - Output current:5A(Max 10A) - Size:46x26x9mm - Weight:about 35g/pcs 5V/12V 5A (YL14S5A02): - Input voltage:10S-14S Lipo(35V-60V) - Output voltage:5V/12V adjust - Output current:5A(Max 10A) - Size:46x26x9mm - Weight:about 35g/pcs Description: - The UBEC is a switching power supply type UBEC with a continuous output current of 3A/5A. It adopts imported high-efficiency, step-down DC-DC switch IC design, small size, light weight and large output power. At the same time, it adopts shield cover, closed magnetic power inductor and magnetic ring design to avoid electromagnetic interference. - The UBEC can obtain DC voltage suitable for the operation of receivers and other devices from the 2S-12S/10-14S lithium battery pack, and stably delivers up to 3A/5A of output current for powering devices such as receivers, gyroscopes, and multiple servos. Ideal for large fixed-wing and electric helicopters. With this device, you can get the power required by the receiver directly from the power supply, without having to have a separate receiver battery pack. Feature: 1.Using imported buck switching power supply IC design, the efficiency is up to 90%. 2.While ensuring performance, the compact design, small size, light weight, only about 35g. 3.Low noise design, all components are fully shielded, and closed magnetic high-power inductors are used. At the same time, the output line is equipped with a magnetic ring, which greatly reduces electromagnetic interference. 4.The output current is large, the continuous output current is 3A/5A, and the peak output current is 5A/10A; the power demand of the equipment is fully guaranteed. 5.With a wide range of operating voltage, can work normally between 2S-12S/10S-14S. 6.With overheat protection, output short circuit protection, output overvoltage and anti-back protection. 7.Output indicator, use red LED work indicator, UBEC normal working time, indicator light. 8.Soft start switch, open or close the output of UBEC through the soft start switch. How to Use: - 5V/6V 3A (YL12S3A01): Switching voltage output: through the jumper cap to select. The jumper is inserted at pin 1 and pin 2 to select 6V output, inserted at pin 2 and pin 3 to select 5V output. Please refer to the figure. If the jumper cap is lost, the default output of UBEC is 5V. - 5V/12V 3A (YL12S3A02): Switching voltage output:through the jumper cap to select. The jumper is inserted at pin 1 and pin 2 to select 12V output, inserted at pin 2 and pin 3 to select 5V output. Please refer to the figure. If the jumper cap is lost, the default output of UBEC is 5V. - 5V/6V 5A (YL14S5A01): The output voltage is 5V/6V switchable, through the jumper cap to select. The jumper is inserted at pin 1 and pin 2 to select 6V output, inserted at pin 2 and pin 3 to select 5V output. Please refer to the figure. If the jumper cap is lost, the default output of UBEC is 5V. - 5V/12V 5A (YL14S5A02): The output voltage is 5V/12V switchable, through the jumper cap to select. The jumper is inserted at pin 1 and pin 2 to select 12V output, inserted at pin 2 and pin 3 to select 5V output. Please refer to the figure. If the jumper cap is lost, the default output of UBEC is 5V. - Power indicator: The power indicator is used to display the output status. If it is bright, UBEC has a normal voltage output. If it is not lit, please check if the power input cable is connected and the battery pack is good. - Turn on/off the output: the switch is set to ON, the output is turned on; the OFF position is placed, and the output is turned off. Special Introduction: 1. Although various measures have been taken to reduce electromagnetic interference, the UBEC of the switching regulator mode cannot completely avoid a small amount of electromagnetic interference during operation; to ensure the normal operation of the receiver, please output the output magnetic ring and UBEC master Keep the distance of the board as far as possible (the magnetic ring cannot be superimposed on the main control board), and the entire UBEC should be as far away as possible from the receiver
