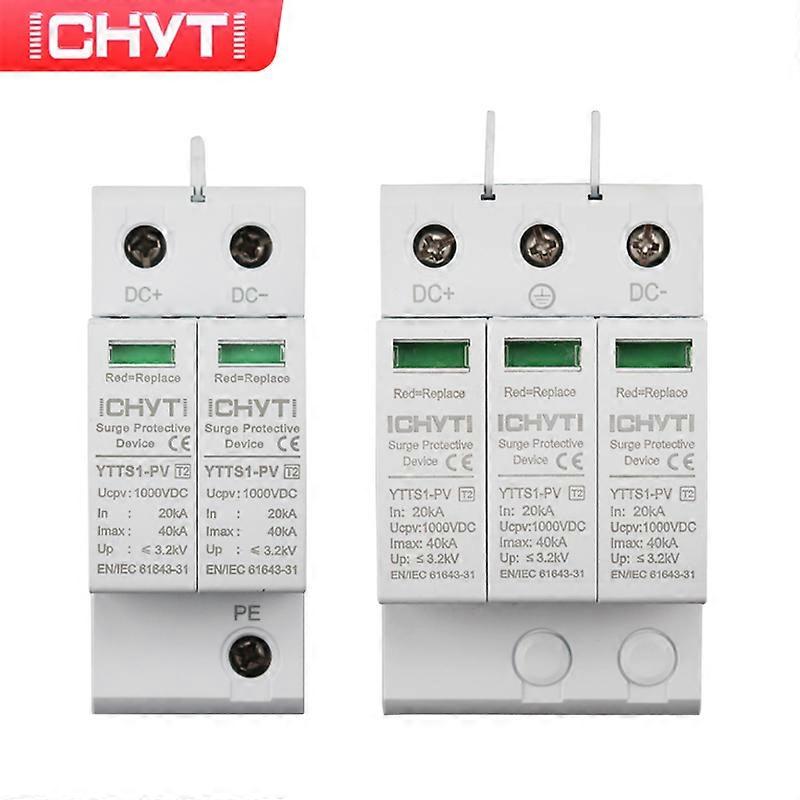

Product introduction Surge protective device, protect against lightning surge voltages in solar system (photovoltaic power supply system). These units must be installed in parallel on the dc networks to be protected and provide common and different modes protection. Its installed location are recommended at both ends of the dc power supply line (solar panel side and inverter/converter side), especially if the line routing is external and long. High energy MOVs equipped with specific thermal disconnectors and related failure indicators. Product features 1.Type 2 surge protective device for Photovoltaic. 2.Module design, convenient installation, could be replaced. 3.Time of response <25ns. 4.The color of visible window shows operating status, green means normal, red means abnormal. 5.No leakage, no operating currents. 6.Remote Signaling (option). Product specifications Product Model YTTS1-PV Pole 2P 3P Rated Frequency One port SPD Category Combined type Test Category Cla II test Colour Green White Green White Maximum Continuous Operating Voltage Uc 600VDC 1000VDC 1000VDC 1500VDC Voltage Protection Level Up(8/20s) 3.2kV 3.2kV Nominal Discharge Current ln(8/20s) 20kA 20kA Maximum Discharge Current lmax(8/20s) 40kA 40kA Response Time tA 25ns Size 36x90x66 54x90x66 Failure Indication Green: Normal Red: Failure Sectional Area Of Wires 6~25mm2 Installation Method 35mm standard rail Working Environment Temperature -40 ~+85 Sheathing Material Plastic Protection Level IP20 Executive Standard IEC 61643-31
