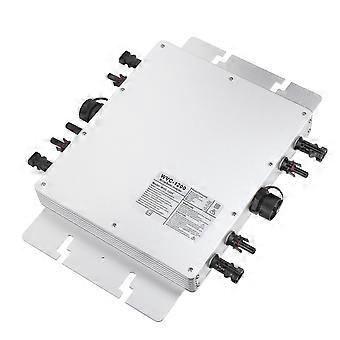

WVC-1200 Micro Inverter Sine Wave Solar Photovoltaic Power Generation System Waterproof120V Item Type: Micro Inverter Material: Aluminum Alloy + Electronic Components Model: WVC-1200 Maximum Input Power: 1200W Product Use: Solar Power Generation Equipment Applicable Scenarios: Solar Power System (Roof, Outdoor) Weight: Approx. 3675g / 129.6oz Product Size: Approx. 370x300x41.6mm / 14.6x11.8x1.6in Parameter Output Voltage Mode Automatic switching Solar Panel Open Circuit Voltage Range 30-60VOC Peak Power Tracking Voltage 22-60V Min/Max Starting Voltage 22-60V Maximum DC Short Circuit Current 55A Maximum Input Working Current 48A Output Parameters At 120V At 230V Peak Output Power 1200Watt 1200Watt Rated Output Power 1150Watt 1150Watt Rated Output Current 10A 5.22A Rated Voltage Range 80-160VAC 180-280VAC Rated Frequency Range 48-51Hz/58-61Hz 48-51Hz/58-61Hz Power Factor >95% >95% Number of Connected Units Per String 3 sets (single phase) 6 sets (single phase) Output Efficiency At 120V At 230V Static MPPT Efficiency 99.50% 99.50% Maximum Output Efficiency 95% 95% Power Loss at Night <0.5W <0.5W Total Harmonic Distortion <5% <5% Appearance and Technical Characteristics Range of Working Temperature -40℃ to +65℃ Waterproof Level IP65 NEMA3R Cooling Method Self-cooling Communication Mode 433MHz/WiFi Power Transmission Mode Reverse transmission, load priority use Surveillance System Mobile APP, browser Electromagnetic Compatibility EN61000-6-1:2007 EN6100-6-3:2007+A1:2011+AC:2012 Grid Disturbance EN50549-1, EN 50549-2, NBR 16149:2013, UL1741 Grid Detection IEC/EN 62109-1, IEC/EN 62109-2, IEC 62116, IEEE 1547 Inverter Installation Steps: Step 1: Fix the inverter on the bracket of the photovoltaic panel with the screws attached to the machine. Step 2: Connect the positive and negative poles of the DC connection plugs on the photovoltaic panel to the DC input terminals of the inverter. Step 3: Open the waterproof cover of the AC output connector of the inverter and connect the AC cable to the AC waterproof plug. Step 4: Connect the AC output line to the AC main cable; Step 5: Repeat steps 1 to 3 to install and connect all inverters; Step 6: Connect the AC main cable to the mains grid to start your green energy journey. Note: Before installing WVC series micro-inverter products, please read this manual first and pay attention to the installation details. This manual contains important instructions that should be followed when installing and maintaining Micro-inverters. In order to reduce When reducing the risks of electric shock and ensuring safe installation and operation, always follow the following safety symbols present in this document to indicate dangerous situations and important safety instructions.
